Model: GW - Claim Loss Financial - ITD

GW - Claim Loss Financial - ITD includes inception-to-date snapshots of claims financials. Aggregates span the period from the time that a loss occurred to right now. The snapshots aggregate various transaction line item amounts, such as loss incurred, expense payments, salvage recoveries, and medical reserves. Analysts can use the model to create visualizations of amounts by accident year. They can view amounts by loss cause, location, claim severity, and other attributes.They can view amounts by loss cause, location, claim severity, and other attributes.

Source tables

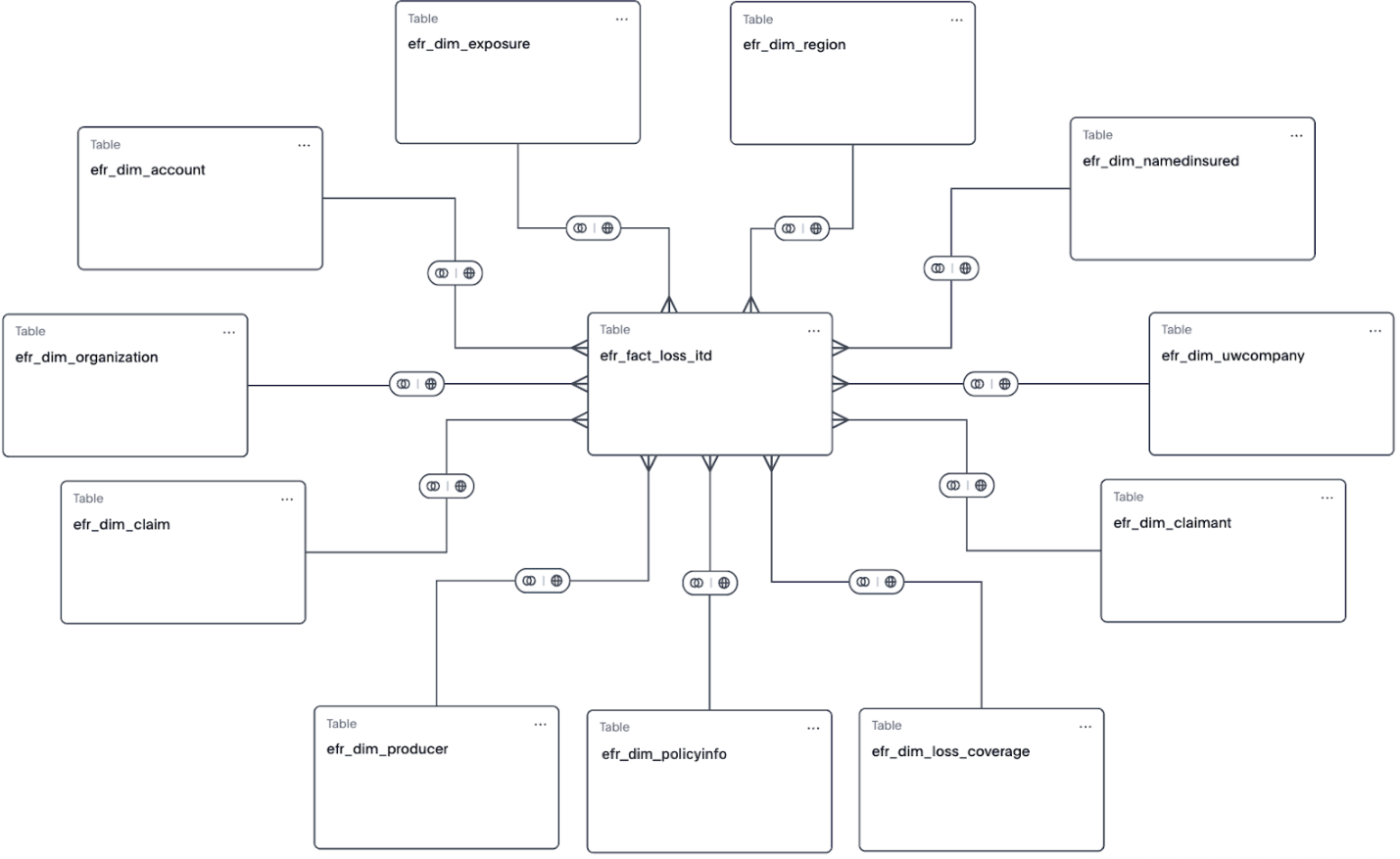

The GW - Claim Loss Financial - ITD model is built from a fact table and multiple dimension tables, as shown in the diagram.
Fact:
  • efr_fact_loss_accidentyear
Dimensions:
  • efr_dim_uwcompany
  • efr_dim_namedinsured
  • efr_dim_organization
  • efr_dim_exposure
  • efr_dim_producer
  • efr_dim_claimant
  • efr_dim_claim
  • efr_dim_region
  • efr_dim_account
  • efr_dim_policyinfo
  • efr_dim_loss_coverage

From each table, Guidewire selected specific columns to include in the model. They’re typical columns used in reporting and analysis. For details about each column in the model, see the Data dictionaries for Explore models.

Formulas

Many of the model’s columns are the result of a formula created on the model in Explore. They aren’t part of the source tables in Explore or Data Studio. Each formula performs a calculation or conversion and the result is an additional column in the model.

For a list of all formula columns and their expressions, see the Data dictionaries for Explore models.

The formulas aggregate various claims financial amounts. For example:
  • ITD aggregate amounts, including net and total aggregates
  • Outstanding aggregate amounts, including net aggregates

Filters

The model is intended to be a current row view, containing only the latest records. But, some of its source dimension tables contain historical change data. In order to exclude that change data from the model, filters are added to the following expiration date columns in Explore. The filters work because the latest records always have an expiration date of 12/31/9000.
Source table Model column name Filter expressions
efr_dim_account Account Row Exp Date >= 12/30/9000
efr_dim_claim Claim Row Exp Date >= 12/30/9000
efr_dim_claimant Claimant Row Exp Date >= 12/30/9000
efr_dim_exposure Exposure Row Exp Date >= 12/30/9000
efr_dim_organization Organization Row Exp Date >= 12/30/9000
efr_dim_producer Producer Row Exp Date >= 12/30/9000
efr_dim_uwcompany UW Company Row Exp Date >= 12/30/9000
To learn more about filters, see Filters.

Hidden columns

The expiration date columns have the property Hidden = Yes, which is set on the model. These columns are hidden because they aren’t useful for reporting, but are used in the model’s filter.
  • Account Row Exp Date
  • Claim Row Exp Date
  • Claimant Row Exp Date
  • Exposure Row Exp Date
  • Organization Row Exp Date
  • Producer Row Exp Date
  • UW Company Row Exp Date

To learn more about hidden columns, see Column properties.
