Example flow for external users

The following diagram identifies the flow of authentication and authorization information for external users. Colors are used in the following ways:

  • Orange - credentials information
  • Blue - endpoint access information
  • Green - resource access information
  • Red - proxy user and session user information

Some values are used to determine multiple types of access. These values initially appear as black (when they do not apply to a single type of access), and then later appear in one or more specific colors (to reflect the value is being used at that point in the process for a specific type of access).

External account holder example

In the following example, an API call is triggered by Ray Newton, who is an external user, using a browser-based application.

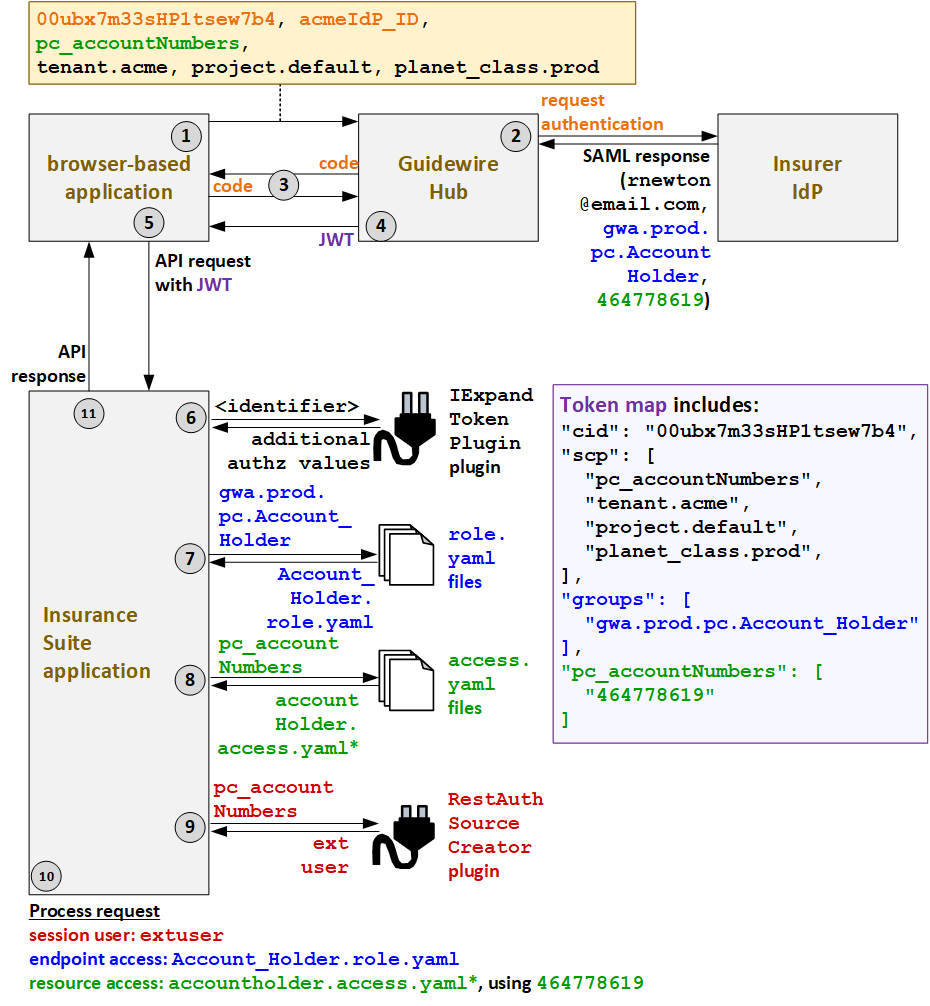

Authentication flow for external users
  1. When Ray triggers an API call, the caller application must first request a JWT from Guidewire Hub. To initiate the process of getting the JWT, the caller application submits its client ID (00ubx7m33sHP1tsew7b4), the ID of the IdP (acmeIdP_ID), the application's resource access strategy (pc_accountNumbers), and additional deployment information (tenant.acme, project.default, planet_class.prod).
  2. Guidewire Hub sends a request to the appropriate IdP to authenticate the user. The IdP authenticates the user and provides a SAML response with information about the user, such as the user's name (rnewton@email.com). If API roles and/or resource access IDs are stored in the IdP, the SAML response may also include this information (such as the role gwa.prod.pc.Account_Holder or the resource access ID 464778619).
  3. Guidewire Hub sends a code to the caller application. The caller application uses this code to request a JWT.
  4. Guidewire Hub generates a JWT and sends it to the caller application. This JWT includes the client ID (cid), a scp token claim which names the resource access strategy (pc_accountNumbers) and additional deployment information. The JWT also contains any relevant information Guidewire Hub received in the SAML response, such as a groups token which names the user's API roles (gwa.prod.pc.Account_Holder), or a pc_accountNumbers token which names the user's resource access IDs (464778619).
  5. The caller application sends the API request to PolicyCenter along with the JWT.
  6. PolicyCenter extracts the information in the JWT into a token map. Then, the IExpandTokenPlugin plugin calls any relevant authorization applications to retrieve any relevant additional auth values that must be added to or modified in the token map. (For external users, this could include API roles and/or resource access IDs that are not stored in the IdP.)
  7. PolicyCenter determines the endpoint access. Based on the groups listed in the token map (gwa.prod.pc.Account_Holder), the Account_Holder.role.yaml API role file is used to define the endpoint access.
  8. Next, PolicyCenter determines the resource access strategy. Based on the resource access strategy value in the token map (pc_accountNumbers), it grants resource access as defined in the accountholder access.yaml files. (* PolicyCenter starts with accountholder_ext-1.0.access.yaml, but this file references additional access.yaml files whose name starts with "accountholder".)
  9. To determine which proxy user to assign to the session, PolicyCenter calls the RestAuthenticationSourceCreator plugin. The token map specified a resource access strategy of pc_accountNumbers. So, the plugin returns the proxy user for external users: extuser.
  10. PolicyCenter processes the request.
    1. The session user is the proxy external user: extuser.
    2. The endpoint access is defined by Account_Holder.role.yaml.
    3. The resource access is defined by accountholder access.yaml using the resource access ID of 464778619.
  11. PolicyCenter provides the response to the initial call.

External producer example

In the following example, an API call is triggered by Karen Egerston, who is an external producer user, using a browser-based application.
Authentication flow for external producer users
  1. When Karen triggers an API call, the caller application must first request a JWT from Guidewire Hub. To initiate the process of getting the JWT, the caller application submits its client ID (00ubx7m33sHP1tsew7b4), the ID of the IdP (acmeIdP_ID), the application's resource access strategy (pc_producerCodes), and additional deployment information (tenant.acme, project.default, planet_class.prod).
  2. Guidewire Hub sends a request to the appropriate IdP to authenticate the user. The IdP authenticates the user and provides a SAML response with information about the user, such as the user's name (kegerston@email.com). If API roles and/or resource access IDs are stored in the IdP, the SAML response may also include this information (such as the role gwa.prod.pc.External Producer Code or the resource access ID ProducerABC|Producer).
  3. Guidewire Hub sends a code to the caller application. The caller application uses this code to request a JWT.
  4. Guidewire Hub generates a JWT and sends it to the caller application. This JWT includes the client ID (cid), a scp token claim which names the resource access strategy (pc_producerCodes) and additional deployment information. The JWT also contains any relevant information Guidewire Hub received in the SAML response, such as a groups token which names the user's API roles (gwa.prod.pc.External Producer Code), or a pc_producerCodes token which names the user's resource access IDs (ProducerABC|Producer).
  5. The caller application sends the API request to PolicyCenter along with the JWT.
  6. PolicyCenter extracts the information in the JWT into a token map. Then, the IExpandTokenPlugin plugin calls any relevant authorization applications to retrieve any relevant additional auth values that must be added to or modified in the token map. (For external users, this could include API roles and/or resource access IDs that are not stored in the IdP.)
  7. PolicyCenter determines the endpoint access. Based on the groups listed in the token map (gwa.prod.pc.External Producer Code), the External_Producer_Code.role.yaml API role file is used to define the endpoint access.
  8. Next, PolicyCenter determines the resource access strategy. Based on the resource access strategy value in the token map (pc_producerCodes), it grants resource access as defined in the externalproducercode access.yaml files. (* PolicyCenter starts with externalproducercode_ext-1.0.access.yaml, but this file references additional access.yaml files whose name starts with "externalproducercode".)
  9. To determine which proxy user to assign to the session, PolicyCenter calls the RestAuthenticationSourceCreator plugin. The token map specified a resource access strategy of pc_producerCodes. So, the plugin returns the proxy user for external producer code users: extproducercodeuser.
  10. PolicyCenter processes the request.
    1. The session user is the proxy external user: extproducercodeuser.
    2. The endpoint access is defined by External_Producer_Code.role.yaml.
    3. The resource access is defined by externalproducercode access.yaml using the resource access ID of ProducerABC|Producer.
    4. For access to internal or sensitive notes and documents associated with the accessible resources, permissions are optionally defined in External_Producer_Code.role.yaml. For more information, see API role special permissions
  11. PolicyCenter provides the response to the initial call.
